Two tables returned with identical group keys

InfluxDB 2
,
1

Can anyone help me figure out this issue? I restructured my database, and have to fill in historical data into the new format. For some reason, the historical data comes out in a different table when I query it, even though all the values in the group key are identical. If I call group() using the same group key, they all end up in 1 table, but I don’t want to have to do that every time I query the database.

image3658×602 157 KB

Here’s the flux that generates that result:

from(bucket: "power_circuit_lores")
  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
  |> filter(fn: (r) => r["_measurement"] == "kw")
  |> filter(fn: (r) => r["_field"] == "pair_min")
  |> filter(fn: (r) => r["circuit_pair_id"] == "3303")
  |> yield(name: "mean")

Running on InfluxDB OSS 2.6.1

2

I tried calling distinct on each of my columns in the group key to see if there was some formatting difference between some of the values, but I get this error, presumably because there are two tables with the same group key values.

runtime error @8:6-8:30: unique: unique found duplicate table with key: {_field=pair_min,_measurement=kw,_start=2023-02-01T20:20:53.847502436Z,_stop=2023-03-03T20:20:53.847502436Z,account_id=52,circuit_pair_id=3303,facility_id=2}
3

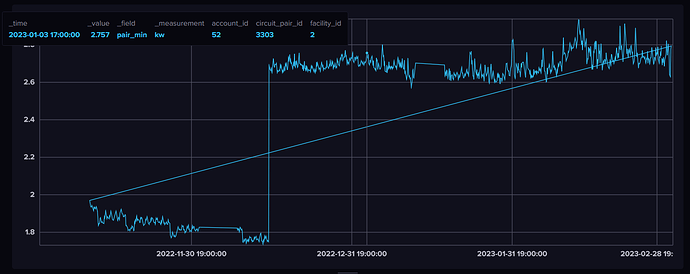

Curiously, when graphing, I only get one color line in the graph, as if it’s a single series, (which of course it should be,) but it connects the beginning to the end in a loop.

image1373×547 66.1 KB

EDIT: Not quite a full loop. It is a single line, but there is a break between the old and new data when I zoom in.

4

If I run group on the same group key, then sort, I now get just one table and the correct graph. I tried piping that query to the same bucket, to overwrite the existing data, but that didn’t help anything.

5

And now some more weirdness, which perhaps helps figure out what is going on here? While trying to unify the points, I somehow got two points into the same bucket with the same time and tags (but are somehow part of different series.) I thought that when adding a point with the same time and tag it would overwrite the old one?

from(bucket: "power_circuit_lores")
  |> range(start: v.timeRangeStart, stop: v.timeRangeStop)
  |> filter(fn: (r) => r["_field"] == "ckt_max")
  |> filter(fn: (r) => r["circuit_id"] == "3304")
  |> filter(fn: (r) => r["_time"] == 2023-03-01T22:00:00.000Z)
  |> yield(name: "mean")

#group,false,false,true,true,false,false,true,true,true,true,true,true,true
#datatype,string,long,dateTime:RFC3339,dateTime:RFC3339,dateTime:RFC3339,double,string,string,string,string,string,string,string
#default,mean,,,,,,,,,,,,
,result,table,_start,_stop,_time,_value,_field,_measurement,account_id,circuit_id,circuit_pair_id,facility_id,panel_id
,,0,2023-02-27T15:01:59.527182778Z,2023-03-06T15:01:59.527182778Z,2023-03-01T22:00:00Z,1.248,ckt_max,kw,52,3304,3304,2,349
,,1,2023-02-27T15:01:59.527182778Z,2023-03-06T15:01:59.527182778Z,2023-03-01T22:00:00Z,1.248,ckt_max,kw,52,3304,3304,2,349
6

Hello @gazpachoking,
I thought so too.
This is very strange behavior.
Can you please create an issue here?

7

Created an issue here Points in the same series being returned in separate tables (plus duplicate points with _all_ values matching) · Issue #24127 · influxdata/influxdb · GitHub

1 Like
8

I probably have the same issue here. Were you able to solve? It seems the issue is still opened in GitHub…

9

Nope, didn’t notice it got solved, I resorted to just manually running group and sort on every query to make sure I only got one table.

10

In fact it has NOT been solved, the issue is still opened.
