Selecting the maximum from an entire range for every timestamp

InfluxDB 2 Dashboards
1

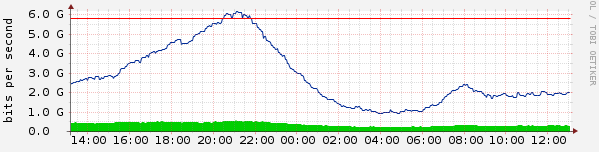

Hello! I am attempting to draw a straight line in Grafana like in rrd (in this case the maximum, not 95th percentile):

I have the following query

SELECT non_negative_derivative("bytes-sent", 1s) *8 AS bps FROM "interface/latest/generic-counters" WHERE "interface-name" = 'Bundle-Ether20') AND time >= now() - 24h

time                     bps
----                     ---
2019-07-31T04:50:40.612Z 4186760242.165622
2019-07-31T04:51:10.614Z 4182186443.037131
2019-07-31T04:51:40.616Z 4324680719.9520035
[etc]

I am able to calculate the maximum over the entire range using a sub-query:

SELECT MAX("bps") FROM (SELECT non_negative_derivative("bytes-sent", 1s) *8 AS bps FROM "interface/latest/generic-counters" WHERE "interface-name" = 'Bundle-Ether20') AND time >= now() - 24h)

time                     max
----                     ---
2019-07-31T11:03:11.453Z 10753011808

In order to get Grafana to draw the line I believe I need a result that has the same maximum value on each timestamp. Is this possible?

time                     bps			max
----                     ---			---
2019-07-31T04:50:40.612Z 4186760242.165622	10753011808
2019-07-31T04:51:10.614Z 4182186443.037131 	10753011808
2019-07-31T04:51:40.616Z 4324680719.9520035	10753011808
[etc]
2

Hi @bpbp-boop welcome to the community ,

it is indeed possible to have the same maximum value on each timestamp ,

best regards

3

Thanks for the welcome :slight_smile:
Is it possible to combine the two queries to get the result I am after? The maximum is dependent on the time range being looked at so I can’t write it into every point.

4

Maybe not. It would be nice if Grafana supported dynamic threshold lines for this purpose. Does anyone know any good Grafana alternatives?

5

did you figure this out? – interesting question
